MP2935DQK - 4-Phase PWM Controller

Download the MP2935DQK datasheet PDF (MP2935 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 4-phase pwm controller.

Description

MP2935 is a high-efficiency, 4-phase, synchronous, buck-switching PWM controller with an SVID interface for high-performance Intel processors.

The multi-phase PWM output signals can be configured for up to 4-phase operation with interleaved switching.

Features

  • VR12.5 compliant.
  • Multi-Phase Operation at up to 2MHz per Phase.
  • Tri-State PWM Outputs for Driving MPS Intelli-PhaseTM Devices.
  • Power-Saving Modes Maximize Efficiency During Light Load and Deeper-Sleep Operation.
  • Active Current Balancing between Output Phases.
  • Independent Current Limit and Load Line Setting Inputs for Additional Design Flexibility.
  • 8-bit Digitally Programmable 0V to 3.04V Output through Serial VID Interface.
  • Overload and Short-Circuit Pro.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MP2935-MPS.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • MP2-202S - Fast Recovery Diode (Sanken)
  • MP200 - Low Cost Quartz Crystal (CTS)
  • MP200-E - Low Cost Quartz Crystal (CTS)
  • MP200701 - Magnetic Proximity Sensors (Cherry)
  • MP200702 - Magnetic Proximity Sensors (Cherry)
  • MP200703 - Magnetic Proximity Sensors (Cherry)
  • MP200A - Low Cost Quartz Crystal (CTS)
  • MP200A-E - Low Cost Quartz Crystal (CTS)
  • MP200B - Low Cost Quartz Crystal (CTS)
  • MP200B-E - Low Cost Quartz Crystal (CTS)
Other Datasheets by MPS
  • MP2935 - 4-Phase PWM Controller
  • MP2935ADQK - 4-Phase PWM Controller
  • MP29373 - Dual 1.5A 23V Step-Down Converter
  • MP2905 - Synchronous Step-Down Controller
  • MP2905EK - Synchronous Step-Down Controller
  • MP2908A - Synchronous Step-Down Controller
  • MP2908AGF - Synchronous Step-Down Controller
  • MP2908AGL - Synchronous Step-Down Controller

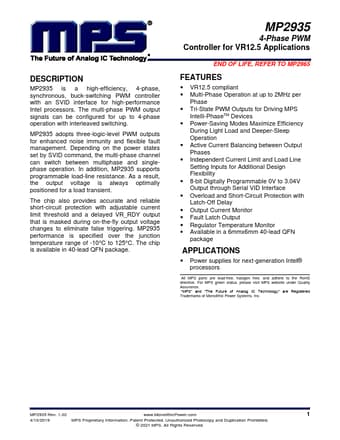

Full PDF Text Transcription

Click to expand full text
DESCRIPTION MP2935 is a high-efficiency, 4-phase, synchronous, buck-switching PWM controller with an SVID interface for high-performance Intel processors. The multi-phase PWM output signals can be configured for up to 4-phase operation with interleaved switching. MP2935 adopts three-logic-level PWM outputs for enhanced noise immunity and flexible fault management. Depending on the power states set by SVID command, the multi-phase channel can switch between multiphase and singlephase operation. In addition, MP2935 supports programmable load-line resistance. As a result, the output voltage is always optimally positioned for a load transient.
