MP2330C - 24V 3A Synchronous Step-Down Converter

MPS

📥 Download Datasheet

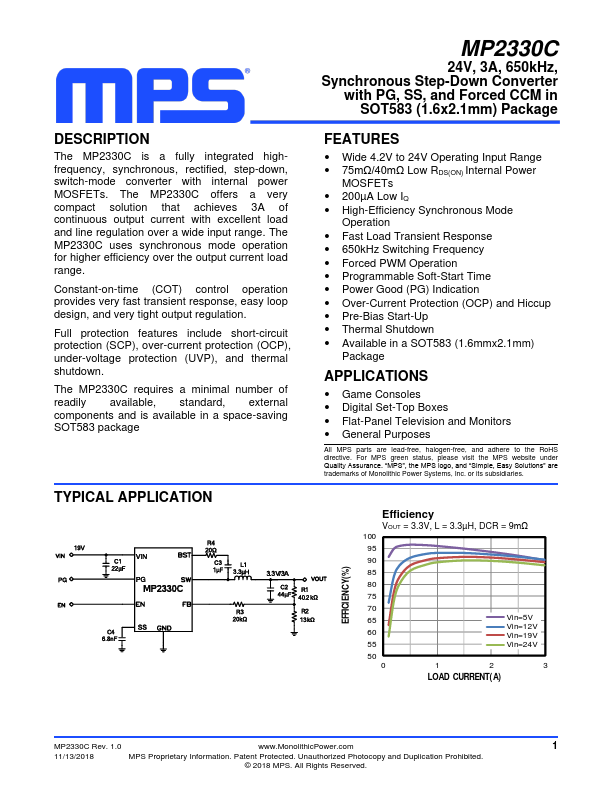

MP2330C Datasheet Preview — Preview of MP2330C PDF

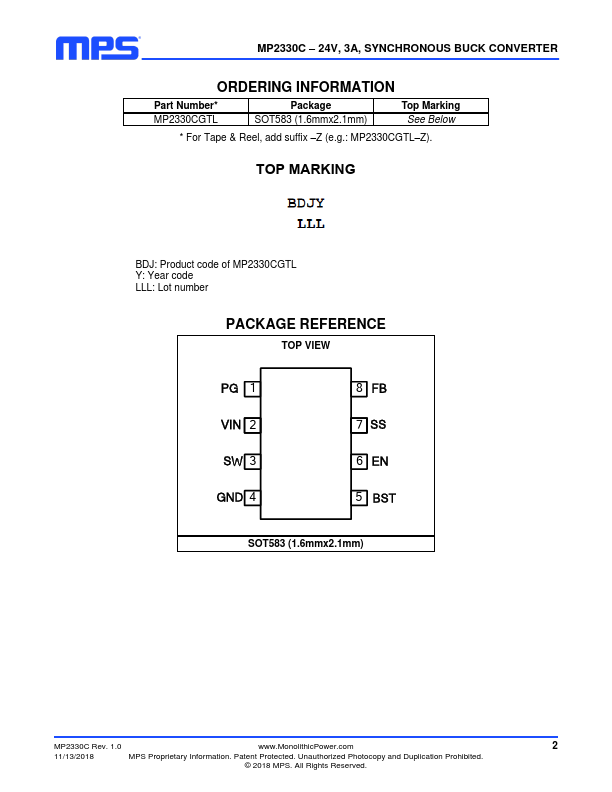

datasheet Preview Page 2

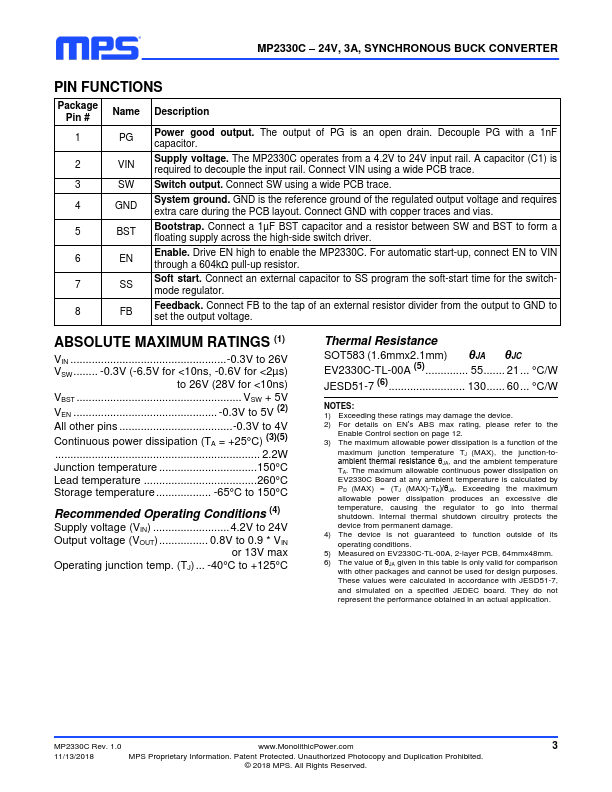

datasheet Preview Page 3

Datasheet Details

Part number	MP2330C
Manufacturer	MPS
File Size	1.36 MB
Description	24V 3A Synchronous Step-Down Converter
Datasheet	MP2330C-MPS.pdf

MP2330C Product details

Description

The MP2330C is a fully integrated highfrequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs.

Features

include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown. The MP2330C requires a minimal number of readily available, standard, external components and is available in a space-saving SOT583 package.
