MP2331H - 24V 2A Synchronous Buck Converter

MPS

📥 Download Datasheet

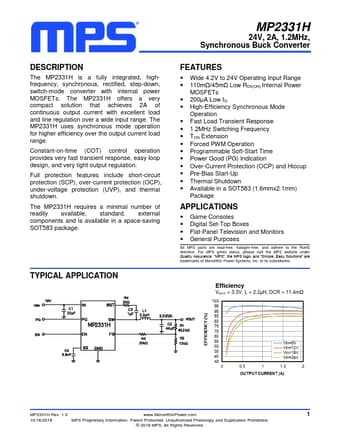

MP2331H Datasheet Preview — Preview of MP2331H PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP2331H
Manufacturer	MPS
File Size	1.25 MB
Description	24V 2A Synchronous Buck Converter
Datasheet	MP2331H-MPS.pdf

MP2331H Product details

Description

The MP2331H is a fully integrated, highfrequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs.

Features

include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown. The MP2331H requires a minimal number of readily available, standard, external components and is available in a space-saving SOT583 package.
