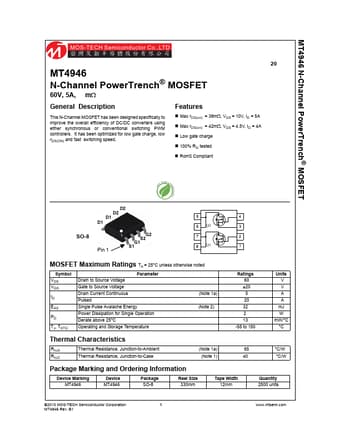

MT4946, MT4946-MOS - N-Channel Power MOSFET

MOS-TECH

Datasheet Details

Part number	MT4946, MT4946-MOS
Manufacturer	MOS-TECH
File Size	868.59 KB
Description	N-Channel Power MOSFET
Datasheet	MT4946-MOS-TECH.pdf
Note	This datasheet PDF includes multiple part numbers: MT4946, MT4946-MOS. Please refer to the document for exact specifications by model.

This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low rDS(ON) and fast switching speed.
Max rDS(on) = 38mΩ, VGS = 10V, ID = 5A.
Max rDS(on) = 42mΩ, VGS = 4.5V, ID = 4A.
Low gate charge.
100% RG tested.
RoHS Compliant DD2DD2 DD1 DD1 SO-8 Pin 1 SO-8 SS1GS1SS2GG2 5 6 Q2 7 8 Q1 4.
