MT9162 - ISO2-CMOS 5 Volt Single Rail Codec

Product Overview

MITEL

Datasheet Details

Part number	MT9162
Manufacturer	MITEL
File Size	112.40 KB
Description	ISO2-CMOS 5 Volt Single Rail Codec
Datasheet	MT9162 Datasheet

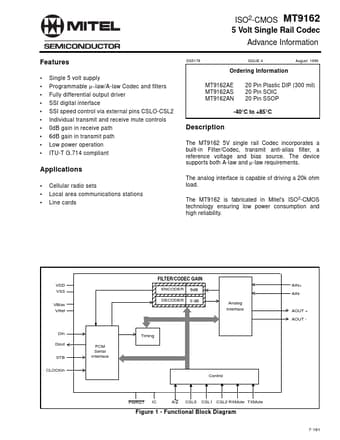

Additional preview pages of the MT9162 datasheet.

Product details

Description

The MT9162 5V single rail Codec incorporates a built-in Filter/Codec, transmit anti-alias ﬁlter, a reference voltage and bias source. Cellular radio sets Local area communications stations Line cards FILTER/CODEC GAIN VDD VSS VBias

Features

Single 5 volt supply Programmable µ.
law/A-law Codec and ﬁlters Fully differential output driver SSI digital interface SSI speed control via external pins CSLO-CSL2 Individual transmit and receive mute controls 0dB gain in receive path 6dB gain in transmit path Low power operation ITU-T G.714 compliant DS5178 ISSUE 4 August 1999 Ordering Information MT9162AE MT9162AS MT9162AN 20 Pin Plasti.
