MT91600 - Programmable SLIC

Product Overview

MITEL

📥 Download Datasheet

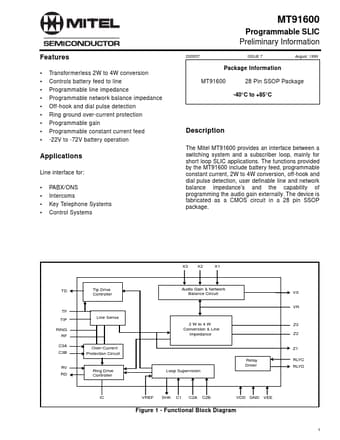

MT91600 Programmable SLIC by MITEL - Datasheet Preview — Datasheet preview – MT91600

Datasheet Details

Part number	MT91600
Manufacturer	MITEL
File Size	95.14 KB
Description	Programmable SLIC
Datasheet	MT91600 Datasheet
Additional preview pages of the MT91600 datasheet.

Product details

Description

The Mitel MT91600 provides an interface between a switching system and a subscriber loop, mainly for short loop SLIC applications.

Features

Transformerless 2W to 4W conversion Controls battery feed to line Programmable line impedance Programmable network balance impedance Off-hook and dial pulse detection Ring ground over-current protection Programmable gain Programmable constant current feed -22V to -72V battery operation DS5057 ISSUE 7 August 1999 Package Information MT91600 28 Pin SSOP Package -40°C to +85°C.
