MT91610 - Analog Ringing SLIC

Product Overview

MITEL

📥 Download Datasheet

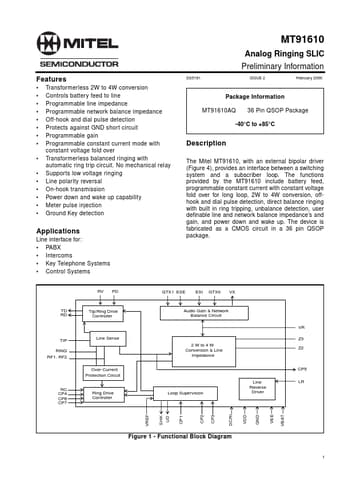

MT91610 Analog Ringing SLIC by MITEL - Datasheet Preview — Datasheet preview – MT91610

Datasheet Details

Part number	MT91610
Manufacturer	MITEL
File Size	96.82 KB
Description	Analog Ringing SLIC
Datasheet	MT91610 Datasheet
Additional preview pages of the MT91610 datasheet.

Product details

Description

The Mitel MT91610, with an external bipolar driver (Figure 4), provides an interface between a switching system and a subscriber loop.

Features

Transformerless 2W to 4W conversion Controls battery feed to line Programmable line impedance Programmable network balance impedance Off-hook and dial pulse detection Protects against GND short circuit Programmable gain Programmable constant current mode with constant voltage fold over Transformerless balanced ringing with automatic ring trip circu.
