SB220 - Schottky Barrier Rectifier

SB220 Description

Schottky Barrier Rectifier 2A, 20~200V DO-15 SB220 to SB2200 .

SB220 Applications

* High Frequency Inverters, Free Wheeling, and Protection ELECTRICAL CHARACTERISTICS Parameter Symbol SB 220 SB 230 SB 240 SB 250 SB 260 SB SB SB SB 280 2100 2150 2200 Maximum Recurrent Peak Reverse Voltage VRRM 20V 30V 40V 50V 60V 80V 100V 150V 200V Maximum RMS Voltage VRMS 14V 21V 28V 3

📥 Download Datasheet

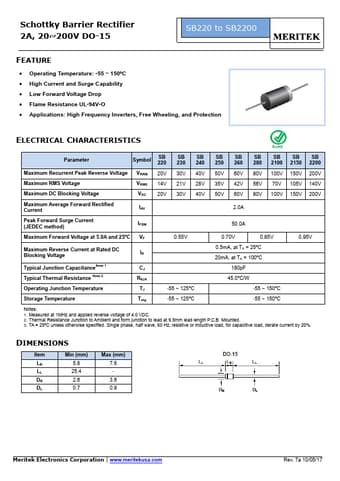

Preview of SB220 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SB220
Manufacturer
MERITEK
File Size
452.14 KB
Datasheet
SB220-MERITEK.pdf
Description
Schottky Barrier Rectifier
