SB220S Schottky Barrier Rectifier

SB220S Description

www.vishay.com SB220S, SB230S, SB240S, SB250S, SB260S Vishay General Semiconductor Schottky Barrier Plastic Rectifier DO-41 (DO-204AL) .

SB220S Features

* Guardring for overvoltage protection
* Very small conduction losses
* Extremely fast switching
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Mat

SB220S Applications

* For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. MECHANICAL DATA Case: DO-41 (DO-204AL) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Terminals: matte tin plated leads, solder

📥 Download Datasheet

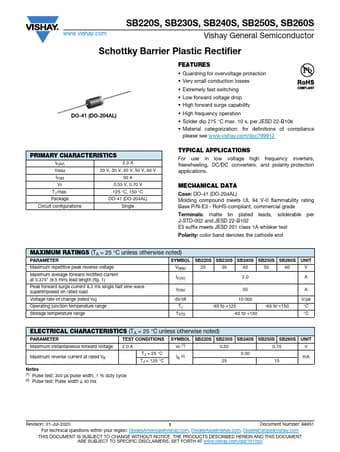

Preview of SB220S PDF
