SB220, SB220_GOOD SCHOTTKY BARRIER RECTIFIER

SB220 Description

SB220 THRU SB2B0 SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 2.0 Amperes .

SB220 Applications

* Mechanical Data Case: Molded plastic, DO-15 Terminals: Axial leads, solderable per MIL-STD-202, method 208 Polarity: Color band denotes cathode Mounting Position: Any Weight: 0.014 ounce, 0.39 gram DIM ENSIONS DIM A B C D inches Min. 0.228 0.102 0.028 1.000 Max. 0.299 0.142 0.034 Min. 5.8 2.6 0.71

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB220, SB220_GOOD. Please refer to the document for exact specifications by model.

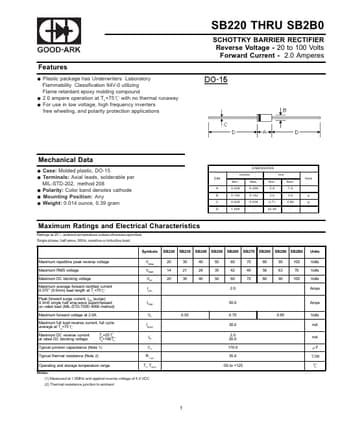

datasheet Preview Page 2

Datasheet Details

Part number
SB220, SB220_GOOD
Manufacturer
GOOD-ARK Electronics
File Size
180.78 KB
Datasheet
SB220_GOOD-ARKElectronics.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SB220, SB220_GOOD.
Please refer to the document for exact specifications by model.
