2A02, 2A01 - 2 Amp Silicon Rectifier

MCC

📥 Download Datasheet

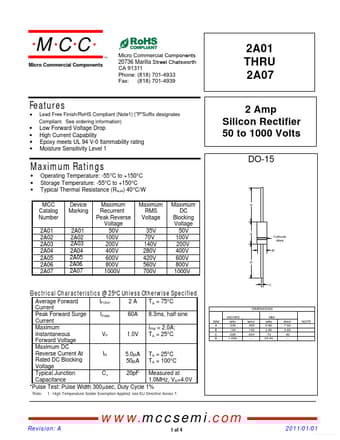

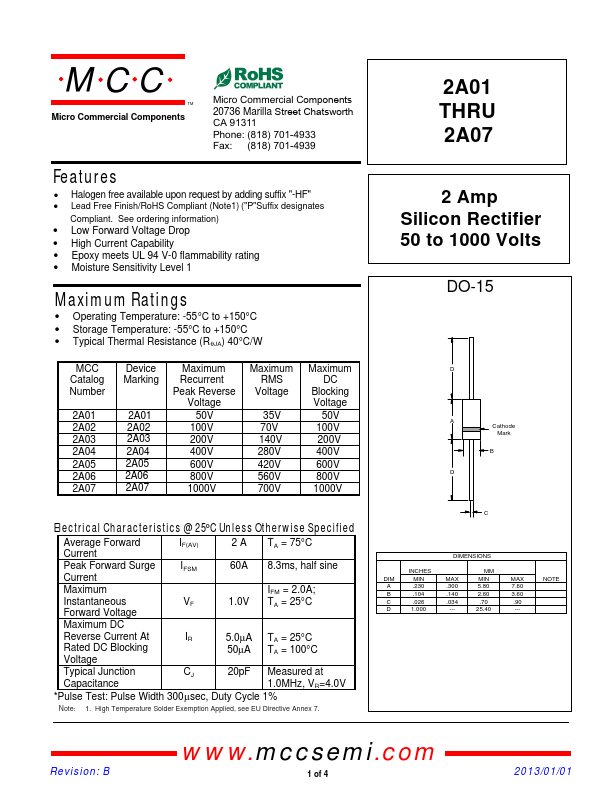

2A02 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2A02, 2A01. Please refer to the document for exact specifications by model.

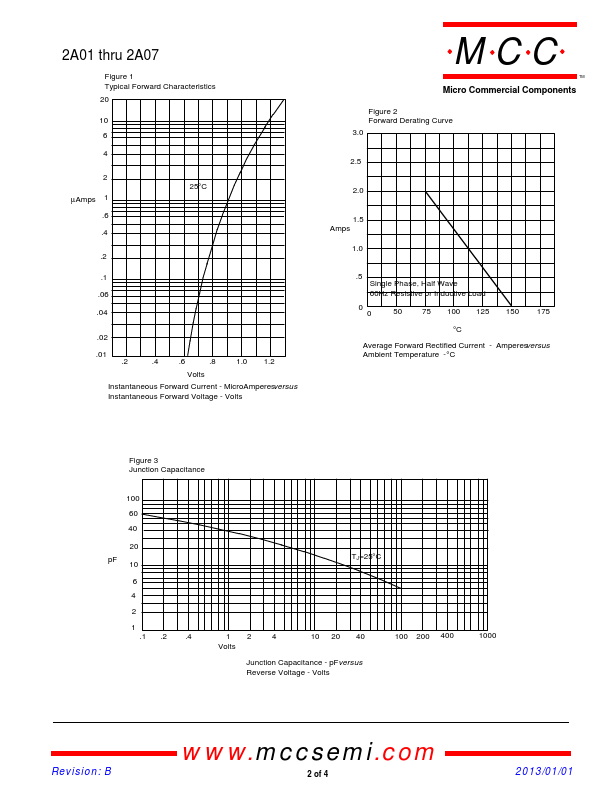

datasheet Preview Page 2

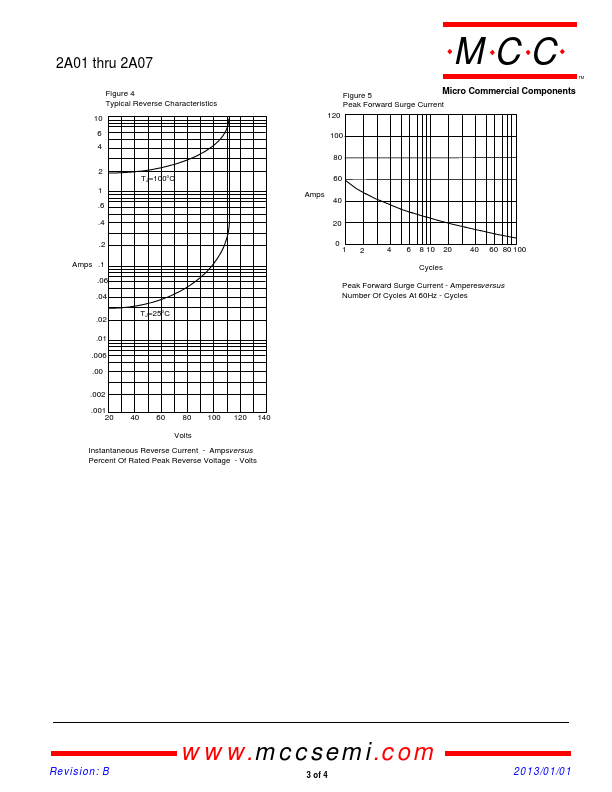

datasheet Preview Page 3

Datasheet Details

Part number	2A02, 2A01
Manufacturer	MCC
File Size	414.54 KB
Description	2 Amp Silicon Rectifier
Datasheet	2A01_MCC.pdf
Note	This datasheet PDF includes multiple part numbers: 2A02, 2A01. Please refer to the document for exact specifications by model.

2A02 Product details

Features

Halogen free available upon request by adding suffix "-HF".
Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
Low Forward Voltage Drop.
High Current Capability.
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1 Maximum Ratings.
Operating Temperature: -55°C to +150°C.
Storage Temperature: -55°C to +150°C.
Typical Thermal Resistance (RθJA) 40°C/.
