MX1020W Low Side GaN and MOSFET Driver

MX1020W Description

General .
The MX1020W is a single channel low-side enhancementmode GaN FET and logic-level MOSFET driver for high switching frequency applications.

MX1020W Features

* undervoltage lockout (UVLO) and overtemperature protection (OTP) to ensure the device is not damaged in overload or fault conditions. Features
* 1.25ns typical minimum input pulse width
* 2.5ns typical rising propagation delay
* 2.7ns typical falling propagation delay

MX1020W Applications

* Narrow pulse width capability, fast switching specification, and small pulse distortion combine to significantly enhance LiDAR, ToF, and Power Converter performance. 1.25ns output pulse width enables more powerful, eye-safe diode pulses. This, combined with 300ns distortion, leads to longer-range,

📥 Download Datasheet

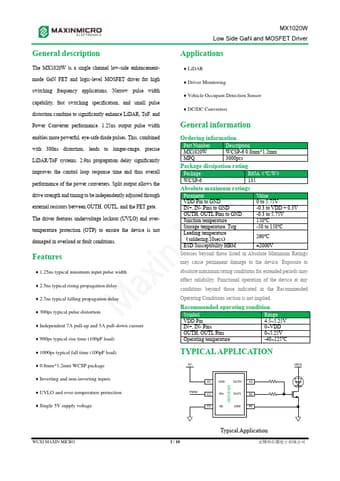

Preview of MX1020W PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MX1020W
Manufacturer
MAXINMICRO
File Size
586.65 KB
Datasheet
MX1020W-MAXINMICRO.pdf
Description
Low Side GaN and MOSFET Driver
