PGB1010603, PGB1010402 - Surface Mount Polymeric Electrostatic Discharge Suppressors

Littelfuse

PGB1010603 Datasheet Preview — This datasheet PDF includes multiple part numbers: PGB1010603, PGB1010402. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PGB1010603, PGB1010402
Manufacturer	Littelfuse ↗
File Size	672.68 KB
Description	Surface Mount Polymeric Electrostatic Discharge Suppressors
Datasheet	PGB1010402-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: PGB1010603, PGB1010402. Please refer to the document for exact specifications by model.

PGB1010603 Product details

Description

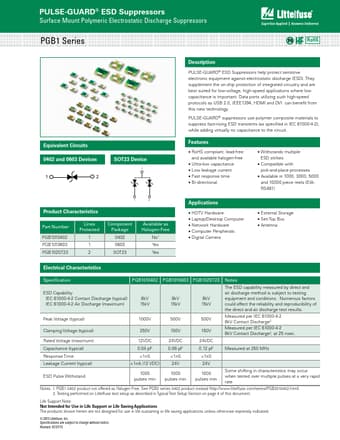

(0.075") 1.09 0.69 +/- 0.10 (0.027" +/- 0.004) (0.043") PULSE-GUARD® ESD Suppressors help protect sensitive Wave Sold0e.8r1 (0.032") TYP 0.91 (0.036") TYP 0.15 +/- 0.08 electronic equipment against electrostatic discharge (ESD).They supplement the on-chip protection of integrated circuitry and are 0.76 (0.030") (0.006 +/- 0.003") TYP best suited for low-voltage, high-speed applications where low Reﬂow Solder 1.02 (0.040") 3.30 (0.1301".)27 Wave Solder 1.02 (0.040") 1.27 capacitance

Features

.
RoHS compliant, lead-free and available halogen-free.
Ultra-low capacitance.
Low leakage current.
Fast response time.
Bi-directional.
Withstands multiple ESD strikes.
Compatible with pick-and-place processes.
Available in 1000, 3000, 5000 and 10000 piece reels (EIARS481) 1 2 Product Characteristics Part Number PGB1010402 PGB1010603 PGB102ST23 Lines Protected 1 1 2 Component Package 0402 0603 SOT23 Available as.
