PGB102ST23WR - PulseGuard Suppressors - Surface Mount Polymeric ESD Suppressors

Littelfuse

The PGB102ST23WR by Littelfuse is a PulseGuard Suppressors - Surface Mount Polymeric ESD Suppressors. Below is the official datasheet preview.

📥 Download Datasheet

PGB102ST23WR PulseGuard Suppressors - Surface Mount Polymeric ESD Suppressors by Littelfuse - Datasheet Preview — Official preview page of the **PGB102ST23WR** PulseGuard Suppressors - Surface Mount Polymeric ESD Suppressors datasheet (Littelfuse).

Datasheet Details

Part number	PGB102ST23WR
Manufacturer	Littelfuse
File Size	194.92 KB
Description	PulseGuard Suppressors - Surface Mount Polymeric ESD Suppressors
Datasheet	PGB102ST23WR_Littelfuse.pdf

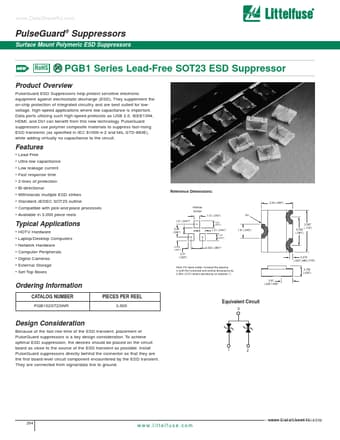

Additional preview pages of the PGB102ST23WR datasheet.

PGB102ST23WR Product details

Description

Ct - Cover tape thickness Dd - Drive hole diameter MEASUREMENT (MM) 0.06 1.50 4.00 1.02 3.23 4.00 2.46 0.30 8.00 Packaging Specifications 8mm Tape and Reel per EIA-RS481-1 (IEC 286, part3); 3,000 pieces per reel, add packaging suffix, WR.Ds - Drive hole spacing Pd - Pocket depth Ph - Pocket height Ps - Pocket spacing Pw - Pocket width Tt - Carrier tape thickness Tw - Carrier tape width w w w.l i t t e l f u s e .c o m 205

Features

Lead-Free.
Ultra-low capacitance.
Low leakage current.
Fast response time.
2-lines of protection.
Bi-directional.
Withstands multiple ESD strikes.
Standard JEDEC SOT23 outline.
Compatible with pick-and-place processes.
Available in 3,000 piece reels Reference Dimensions: 2.24 (.088") Reflow Solder 1.01 (.040") 1.01 (.040").
2.29 (.090") 1.27 (.050") Sn 2.997 (.118") Typical.
