PGB1010603NR - PGB1 Series Lead-Free 0603 Surface Mount ESD Suppressor

The PGB1010603NR by Littelfuse is a PGB1 Series Lead-Free 0603 Surface Mount ESD Suppressor. Below is the official datasheet preview.

📥 Download Datasheet

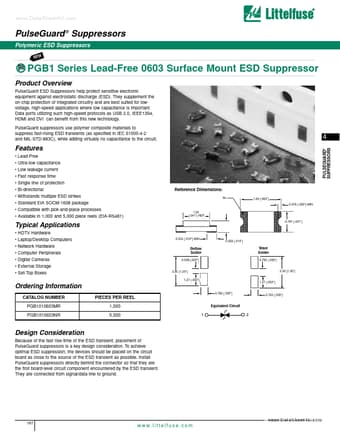

Official preview page of the PGB1010603NR PGB1 Series Lead-Free 0603 Surface Mount ESD Suppressor datasheet (Littelfuse).

Datasheet Details

Part number PGB1010603NR
Manufacturer Littelfuse
File Size 135.42 KB
Description PGB1 Series Lead-Free 0603 Surface Mount ESD Suppressor
Datasheet download datasheet PGB1010603NR_Littelfuse.pdf
Additional preview pages of the PGB1010603NR datasheet.

PGB1010603NR Product details

Description

Ct - Cover tape thickness Dd - Drive hole diameter Ds - Drive hole spacing Pd - Pocket depth Ph - Pocket height Ps - Pocket spacing Pw - Pocket width Tt - Carrier tape thickness Tw - Carrier tape width MEASUREMENT (MM) 0.06 1.50 4.00 0.58 1.85 4.00 1.02 0.65 8.00 Soldering Parameters: Wave solder - 260°C, 10 seconds maximum Reflow solder - 260°C, 30 seconds maximum Operating Temperature Range: -65°C to +125°C Packaging Specifications 8mm Tape and Reel per EIA-RS481-1 (IEC 286, part3); 1,000
