BTB08-600BW3G - Triacs

Littelfuse

📥 Download Datasheet

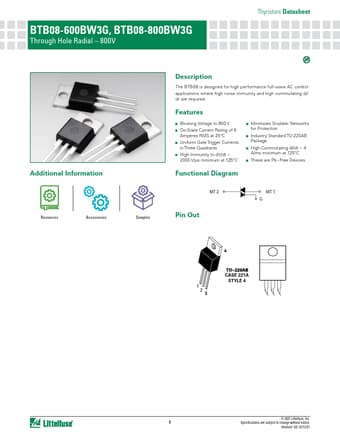

BTB08-600BW3G Datasheet Preview — Preview of BTB08-600BW3G PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BTB08-600BW3G
Manufacturer	Littelfuse
File Size	338.89 KB
Description	Triacs
Datasheet	BTB08-600BW3G-Littelfuse.pdf

BTB08-600BW3G Product details

Description

The BTB08 is designed for high performance full-wave AC control applications where high noise immunity and high commutating di/ dt are required.

Features

Blocking Voltage to 800 V.
On-State Current Rating of 8 Amperes RMS at 25°C.
Uniform Gate Trigger Currents in Three Quadrants.
High Immunity to dV/dt.
2000 V/µs minimum at 125°C.
Minimizes Snubber Networks for Protection.
Industry Standard TO-220AB Package.
High Commutating dI/dt.
4 A/ms minimum at 125°C.
These are Pb.
Free Devices Functional Diagram Resources Accessories Samples MT 2 Pin Out MT 1 G CASE 221A STYLE 4 1 2.
