BTB16-600BW3G - Thyristors

General Description

The BTB16 is designed for high performance full-wave AC control applications where high noise immunity and high commutating di/dt are required.

Key Features

  • Blocking Voltage to 800 V.
  • On-State Current Rating of 16 Amperes RMS at 80°C.
  • Uniform Gate Trigger Currents in Three Quadrants.
  • High Immunity to dV/dt.
  • 1500 V/µs minimum at 125°C.
  • Minimizes Snubber Networks for Protection.
  • Industry Standard TO-220AB Package.
  • High Commutating dI/dt.
  • 7.5 A/ms minimum at 125°C.
  • These are Pb.
  • Free Devices Functional Diagram Resources Accessories Samples MT 2 Pin Out MT 1 G MT 2 MT 1 MT 2 G.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BTB16-600BW3G Triacs Silicon Bidirectional Thyristors ON Semiconductor
BTB16-600BW logic level and standard 16A Triacs STMicroelectronics
BTB16-600BW Triacs VSEEI
BTB16-600BW Three quadrant triacs HAOPIN
BTB16-600BW 16A TRIACS ARK

Other Datasheets by Littelfuse

Part Number Description
BTB16-600CW3G Thyristors
BTB16-700BW3G Thyristors
BTB16-800BW3G Triacs
BTB16-800CW3G Thyristors
BTB12-600CW3G Thyristors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

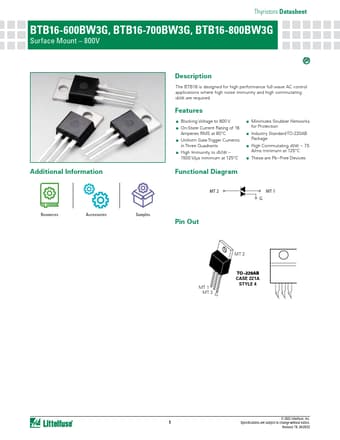

Thyristors Datasheet BTB16-600BW3G, BTB16-700BW3G, BTB16-800BW3G Surface Mount – 800V Additional Information Pb Description The BTB16 is designed for high performance full-wave AC control applications where high noise immunity and high commutating di/dt are required. Features ■ Blocking Voltage to 800 V ■ On-State Current Rating of 16 Amperes RMS at 80°C ■ Uniform Gate Trigger Currents in Three Quadrants ■ High Immunity to dV/dt − 1500 V/µs minimum at 125°C ■ Minimizes Snubber Networks for Protection ■ Industry Standard TO-220AB Package ■ High Commutating dI/dt − 7.5 A/ms minimum at 125°C ■ These are Pb−Free Devices Functional Diagram Resources Accessories Samples MT 2 Pin Out MT 1 G MT 2 MT 1 MT 2 G CASE 221A STYLE 4 © 2022 Littelfuse, Inc.
