BTB08-600CW - logic level and standard 8A Triacs

Download the BTB08-600CW datasheet PDF (BTB08 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for logic level and standard 8a triacs.

Description

Available either in through-hole and surfacemount packages, these devices are suitable for general purpose AC switching.

Features

  • On-state rms current, IT(RMS) 8 A.
  • Repetitive peak off-state voltage, VDRM / VRRM 600 V to 800 V.
  • Triggering gate current, IGT (Q1) 5 to 50 mA.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BTB08-STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

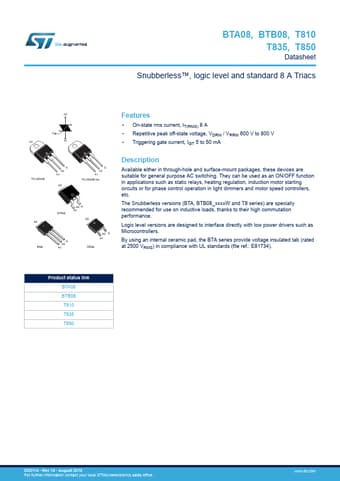

BTA08, BTB08, T810, T835, T850 Snubberless™, logic level and standard 8 A Triacs Datasheet - production data Features  On-state rms current, IT(RMS) 8 A  Repetitive peak off-state voltage, VDRM / VRRM 600 V to 800 V  Triggering gate current, IGT (Q1) 5 to 50 mA Description Available either in through-hole and surfacemount packages, these devices are suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control operation in light dimmers and motor speed controllers, etc. The Snubberless versions (BTA, BTB08_xxxxW and T8 series) are specially recommended for use on inductive loads, thanks to their high commutation performance.
