LSP3127, LSP3127-Lite - 52KHZ 2A PWM Buck DC/DC Converter

Name: LSP3127
SKU: LSP3127-834033

Lite-On

📥 Download Datasheet

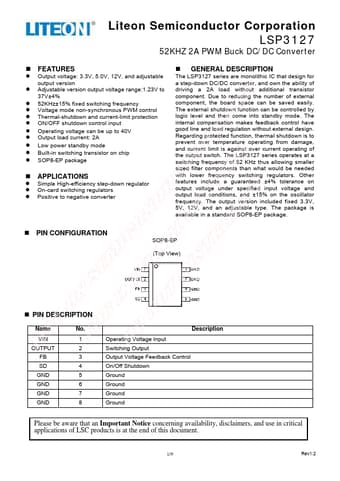

LSP3127 Datasheet Preview — This datasheet PDF includes multiple part numbers: LSP3127, LSP3127-Lite. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LSP3127, LSP3127-Lite
Manufacturer	LITEON
File Size	217.76 KB
Description	52KHZ 2A PWM Buck DC/DC Converter
Datasheet	LSP3127-Lite-On.pdf
Note	This datasheet PDF includes multiple part numbers: LSP3127, LSP3127-Lite. Please refer to the document for exact specifications by model.

LSP3127 Product details

Description

The LSP3127 series are monolithic IC that design for a step-down DC/DC converter, and own the ability of driving a 2A load without additional transistor component.

Features

Output voltage: 3.3V, 5.0V, 12V, and adjustable output version Adjustable version output voltage range:1.23V to 37V±4% 52KHz±15% fixed switching frequency Voltage mode non-synchronous PWM control Thermal-shutdown and current-limit protection ON/OFF shutdown control input Operating voltage can be up to 40V Output load current: 2A Low power standby mode Built-in switching transistor on chip SOP8-EP package.
