LSP3120, LSP3120_Lite - 3A PWM Buck DC-DC Converter

Name: LSP3120
SKU: LSP3120-740316

Lite-On

📥 Download Datasheet

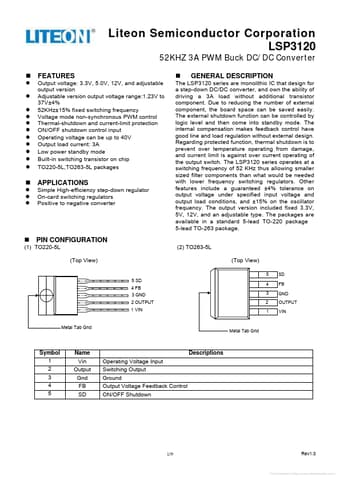

LSP3120 Datasheet Preview — This datasheet PDF includes multiple part numbers: LSP3120, LSP3120_Lite. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LSP3120, LSP3120_Lite
Manufacturer	LITEON
File Size	173.34 KB
Description	3A PWM Buck DC-DC Converter
Datasheet	LSP3120_Lite-On.pdf
Note	This datasheet PDF includes multiple part numbers: LSP3120, LSP3120_Lite. Please refer to the document for exact specifications by model.

LSP3120 Product details

Description

The LSP3120 series are monolithic IC that design for a step-down DC/DC converter, and own the ability of driving a 3A load without additional transistor component.

Features

Output voltage: 3.3V, 5.0V, 12V, and adjustable output version Adjustable version output voltage range:1.23V to 37V±4% 52KHz±15% fixed switching frequency Voltage mode non-synchronous PWM control Thermal-shutdown and current-limit protection ON/OFF shutdown control input Operating voltage can be up to 40V Output load current: 3A Low power standby mode Built-in switching transistor on chip TO220-5L,TO263-5L packages.
