LSP3105, LSP3105_Lite - 2A Synchronous Step-Down Converter

Lite-On

📥 Download Datasheet

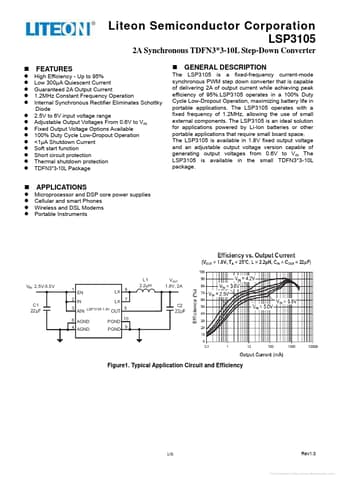

LSP3105 Datasheet Preview — This datasheet PDF includes multiple part numbers: LSP3105, LSP3105_Lite. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LSP3105, LSP3105_Lite
Manufacturer	LITEON
File Size	674.03 KB
Description	2A Synchronous Step-Down Converter
Datasheet	LSP3105_Lite-On.pdf
Note	This datasheet PDF includes multiple part numbers: LSP3105, LSP3105_Lite. Please refer to the document for exact specifications by model.

LSP3105 Product details

Description

The LSP3105 is a fixed-frequency current-mode synchronous PWM step down converter that is capable of delivering 2A of output current while achieving peak efficiency of 95%.LSP3105 operates in a 100% Duty Cycle Low-Dropout Operation, maximizing battery life in portable applications.

Features

High Efficiency - Up to 95% Low 300µA Quiescent Current Guaranteed 2A Output Current 1.2MHz Constant Frequency Operation Internal Synchronous Rectifier Eliminates Schottky Diode 2.5V to 6V input voltage range Adjustable Output Voltages From 0.6V to VIN Fixed Output Voltage Options Available 100% Duty Cycle Low-Dropout Operation.
