LTC1706-61 - 5-Bit VID Voltage Programmer

Linear

📥 Download Datasheet

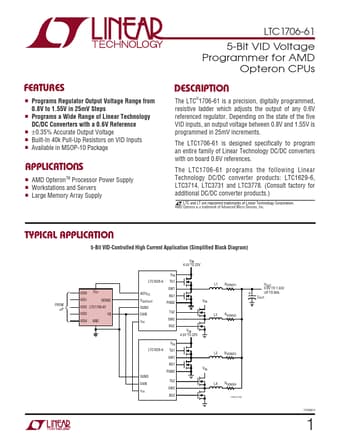

LTC1706-61 Datasheet Preview — Preview of LTC1706-61 PDF

Datasheet Details

Part number	LTC1706-61
Manufacturer	Linear
File Size	173.58 KB
Description	5-Bit VID Voltage Programmer
Datasheet	LTC1706-61-Linear.pdf

LTC1706-61 Product details

Description

LSB Programmable Input 4th MSB Programmable Input 3rd MSB Programmable Input 2nd MSB Programmable Input Power Supply Regulator Output Voltage 1st MSB Programmable Input Ground 0.6V Feedback Input NOMINAL (V) MIN TYP MAX 0 VCC 0 VCC 0 VCC 0 VCC 2.7 5.5 0.8 1.55 0 VCC 0 0 0.6 1.5 ABSOLUTE MAX (V) MIN MAX 0.3 7 0.3 7 0.3 7 0.3 7 0.3 7 0.3 7 0.3 7 0.3 7 0.3 7 BLOCK DIAGRA VCC VID0 1 40k VCC VID1 2 40k VC

Features

s Programs Regulator Output Voltage Range from 0.8V to 1.55V in 25mV Steps s Programs a Wide Range of Linear Technology DC/DC Converters with a 0.6V Reference s ±0.35% Accurate Output Voltage s Built-In 40k Pull-Up Resistors on VID Inputs s Available in MSOP-10 Package U.
