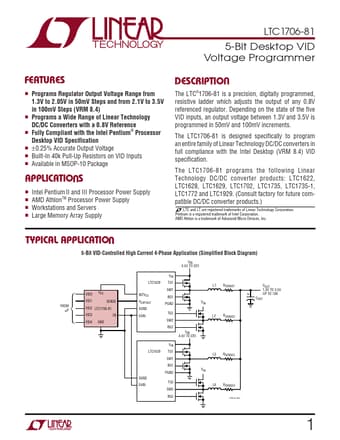

LTC1706-81 Datasheet (Linear Technology) - 5-Bit Desktop VID Voltage Programmer

LTC1706-81, 5-Bit Desktop VID Voltage Programmer

LSB Programmable Input 3rd MSB Programmable Input 2nd MSB Programmable Input 1st MSB Programmable Input Power Supply Regulator Output Voltage Output Range Programmable Input Ground 0.8V Feedback Input MIN 0 0 0 0 2.7 1.3 0 NOMINAL (V) TYP MAX VCC VCC VCC VCC 5.5 3.5 VCC 0 ABSOLUTE MAX (V) MIN MAX

LTC1706-81 Features

* s DESCRIPTIO s s s s s Programs Regulator Output Voltage Range from 1.3V to 2.05V in 50mV Steps and from 2.1V to 3.5V in 100mV Steps (VRM 8.4) Programs a Wide Range of Linear Technology DC/DC Converters with a 0.8V Reference Fully Compliant with the Intel Pentium® Processor Desktop VID Specific
