LTC1706-82 - VID Voltage Programmer

Linear Technology

📥 Download Datasheet

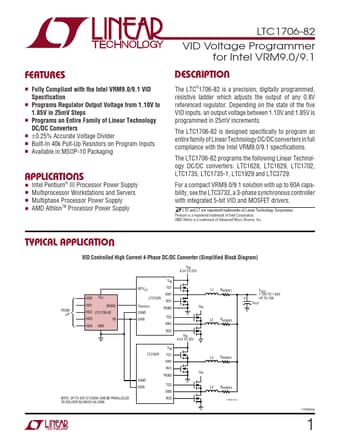

LTC1706-82 Datasheet Preview — Preview of LTC1706-82 PDF

Datasheet Details

Part number	LTC1706-82
Manufacturer	Linear Technology
File Size	155.34 KB
Description	VID Voltage Programmer
Datasheet	LTC1706-82_LinearTechnology.pdf

LTC1706-82 Product details

Description

LSB Programmable Input 4th MSB Programmable Input 3rd MSB Programmable Input 2nd MSB Programmable Input Power Supply Regulator Output Voltage MSB Programmable Input Ground 0.8V Feedback Input NOMINAL (V) MIN TYP MAX 0 VCC 0 VCC 0 VCC 0 VCC 2.7 5.5 1.075 1.85 0 VCC 0 0 0.8 1.075 ABSOLUTE MAX (V) MIN MAX 0.3 7 0.3 7 0.3 7 0.3 7 0.3 7 0.3 7 0.3 7 0.3 7 0.3 7 170682fa 4 W BLOCK DIAGRA VCC VID0 1 40k

Features

s Fully Compliant with the Intel VRM9.0/9.1 VID Specification s Programs Regulator Output Voltage from 1.10V to 1.85V in 25mV Steps s Programs an Entire Family of Linear Technology DC/DC Converters s ±0.25% Accurate Voltage Divider s Built-In 40k Pull-Up Resistors on Program Inputs s Available in MSOP-10 Packaging U.
