LTC3588-1 - Piezoelectric Energy Harvesting Power Supply

Linear Technology

📥 Download Datasheet

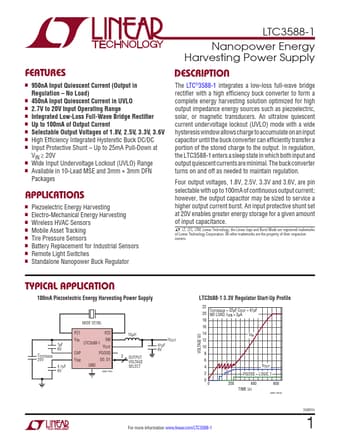

LTC3588-1 Datasheet Preview — Preview of LTC3588-1 PDF

Datasheet Details

Part number	LTC3588-1
Manufacturer	Linear Technology
File Size	504.17 KB
Description	Piezoelectric Energy Harvesting Power Supply
Datasheet	LTC3588-1_LinearTechnology.pdf

LTC3588-1 Product details

Description

The LTC®3588-1 integrates a low-loss full-wave bridge rectifier with a high efficiency buck converter to form a complete energy harvesting solution optimized for high output impedance energy sources such as piezoelectric, solar, or magnetic transducers.

Features

nn 950nA Input Quiescent Current (Output in Regulation.
No Load) nn 450nA Input Quiescent Current in UVLO nn 2.7V to 20V Input Operating Range nn Integrated Low-Loss Full-Wave Bridge Rectifier nn Up to 100mA of Output Current nn Selectable Output Voltages of 1.8V, 2.5V, 3.3V, 3.6V nn High Efficiency Integrated Hysteretic Buck DC/DC nn Input Protective Shunt.
Up to 25mA Pull-Down at VIN ≥ 20V nn Wide Input Undervoltage Lockout (UVLO) Range nn Available in 10-Lead MSE and 3mm × 3.
