LTC3586 - High Effi ciency USB Power Manager

Linear Technology

📥 Download Datasheet

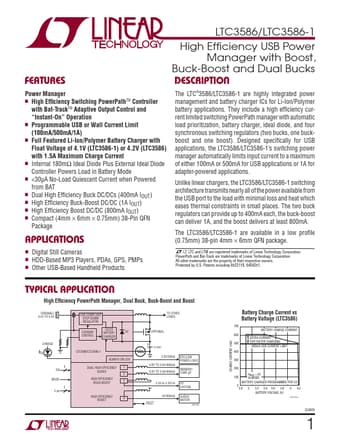

LTC3586 Datasheet Preview — Preview of LTC3586 PDF

Datasheet Details

Part number	LTC3586
Manufacturer	Linear Technology
File Size	448.79 KB
Description	High Effi ciency USB Power Manager
Datasheet	LTC3586_LinearTechnology.pdf

LTC3586 Product details

Description

Power Manager n High Efficiency Switching PowerPathTM Controller with Bat-TrackTM Adaptive Output Control and “Instant-On” Operation n Programmable USB or Wall Current Limit (100mA/500mA/1A) n Full Featured Li-Ion/Polymer Battery Charger with Float Voltage of 4.1V (LTC3586-1) or 4.2V (LTC3586) with 1.5A Maximum Charge Current n Internal 180mΩ Ideal Diode Plus External Ideal Diode Controller Powers Load in Battery Mode n

Features

High Efficiency USB Power Manager with Boost, Buck-Boost and Dual Bucks.
