LTC3524 - Adjustable TFT Bias Supply

Name: LTC3524
SKU: LTC3524-633520

Linear Technology Corporation

📥 Download Datasheet

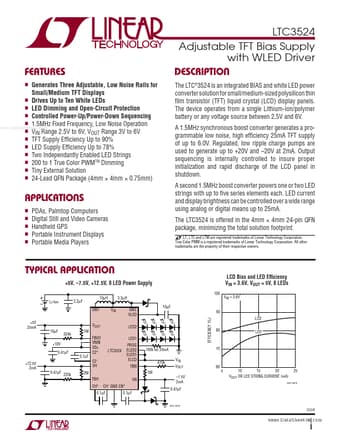

LTC3524 Datasheet Preview — Preview of LTC3524 PDF

Datasheet Details

Part number	LTC3524
Manufacturer	Linear Technology Corporation
File Size	301.24 KB
Description	Adjustable TFT Bias Supply
Datasheet	LTC3524_LinearTechnologyCorporation.pdf

LTC3524 Product details

Description

The LTC®3524 is an integrated BIAS and white LED power converter solution for small/medium-sized polysilicon thin ﬁlm transistor (TFT) liquid crystal (LCD) display panels. 20V at 2mA.

Features

Generates Three Adjustable, Low Noise Rails for Small/Medium TFT Displays.
Drives Up to Ten White LEDs.
LED Dimming and Open-Circuit Protection.
Controlled Power-Up/Power-Down Sequencing.
1.5MHz Fixed Frequency, Low Noise Operation www. DataSheet4U. com.
V Range 2.5V to 6V, V IN OUT Range 3V to 6V.
TFT Supply Efﬁciency Up to 90%.
LED Supply Efﬁciency Up to 78%.
Two Independantly Enabled LED Strings.
200 to 1 True Color PWMTM Dimming.
Tiny External.
