LTC2755 - Quad Current Output 12-/14-/16-Bit SoftSpan DACs

Linear Technology

📥 Download Datasheet

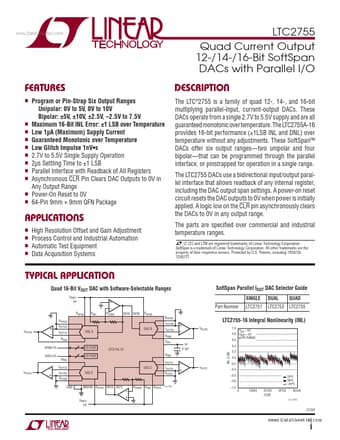

LTC2755 Datasheet Preview — Preview of LTC2755 PDF

Datasheet Details

Part number	LTC2755
Manufacturer	Linear Technology
File Size	471.11 KB
Description	Quad Current Output 12-/14-/16-Bit SoftSpan DACs
Datasheet	LTC2755_LinearTechnology.pdf

LTC2755 Product details

Description

The LTC®2755 is a family of quad 12-, 14-, and 16-bit multiplying parallel-input, current-output DACs. two unipolar and four bipolar that can be programmed through the parallel interface, or pinstrapped for operation in a single

Features

Program or Pin-Strap Six Output Ranges Unipolar: 0V to 5V, 0V to 10V Bipolar: ±5V, ±10V, ±2.5V,.
2.5V to 7.5V Maximum 16-Bit INL Error: ±1 LSB over Temperature Low 1μA (Maximum) Supply Current Guaranteed Monotonic over Temperature Low Glitch Impulse 1nV.
s 2.7V to 5.5V Single Supply Operation 2μs Settling Time to ±1 LSB Parallel Interface with Readback of All Registers Asynchronous CLR Pin Clears DAC Outputs to 0.
