LTC2751 - Current Output 12-/14-/16-Bit SoftSpan DACs

Name: LTC2751
SKU: LTC2751-647874

Linear Technology

📥 Download Datasheet

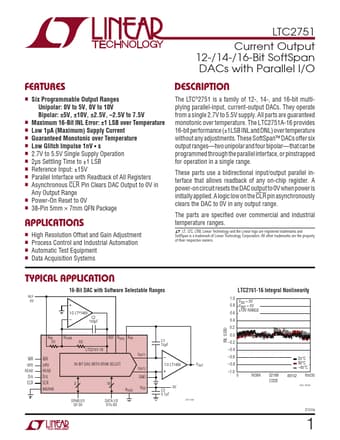

LTC2751 Datasheet Preview — Preview of LTC2751 PDF

Datasheet Details

Part number	LTC2751
Manufacturer	Linear Technology
File Size	301.61 KB
Description	Current Output 12-/14-/16-Bit SoftSpan DACs
Datasheet	LTC2751_LinearTechnology.pdf

LTC2751 Product details

Description

The LTC®2751 is a family of 12-, 14-, and 16-bit multiplying parallel-input, current-output DACs. two unipolar and four bipolar that can be programmed through the parallel interface, or pinstrapped for operation in a single range.

Features

n Six Programmable Output Ranges Unipolar: 0V to 5V, 0V to 10V Bipolar: ±5V, ±10V, ±2.5V,.
2.5V to 7.5V n Maximum 16-Bit INL Error: ±1 LSB over Temperature n Low 1µA (Maximum) Supply Current n Guaranteed Monotonic over Temperature n Low Glitch Impulse 1nV.
s n 2.7V to 5.5V Single Supply Operation n 2µs Settling Time to ±1 LSB n Reference Input: ±15V n Parallel Interface with Readback of All Registers n Asynchronous CLR Pin Clears DAC Output to 0V in Any Output Range.
