LTC2753 - Dual Current Output 12-/14-/16-Bit SoftSpan DACs

Linear Technology

📥 Download Datasheet

LTC2753 Datasheet Preview — Preview of LTC2753 PDF

Datasheet Details

Part number	LTC2753
Manufacturer	Linear Technology
File Size	331.65 KB
Description	Dual Current Output 12-/14-/16-Bit SoftSpan DACs
Datasheet	LTC2753_LinearTechnology.pdf

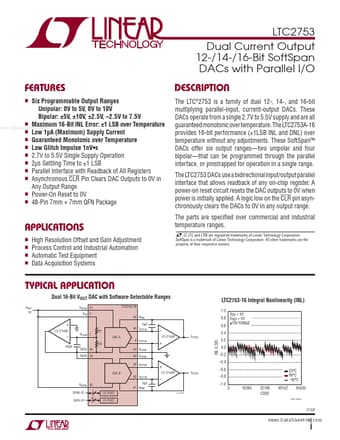

LTC2753 Product details

Description

The LTC®2753 is a family of dual 12-, 14-, and 16-bit multiplying parallel-input, current-output DACs. two unipolar and four bipolar that can be programmed through the parallel interface, or pinstrapped for operation in a single

Features

Six Programmable Output Ranges Unipolar: 0V to 5V, 0V to 10V Bipolar: ±5V, ±10V, ±2.5V,.
2.5V to 7.5V.
Maximum 16-Bit INL Error: ±1 LSB over Temperature www. DataSheet4U. com.
Low 1μA (Maximum) Supply Current.
Guaranteed Monotonic over Temperature.
Low Glitch Impulse 1nV.
s.
2.7V to 5.5V Single Supply Operation.
2μs Settling Time to ±1 LSB.
Parallel Interface with Readback of All Registers.
Asynchronous CLR Pin Clears DAC Outputs to 0V in Any.
