LTC2206, LTC2207 - 16-Bit ADCs

Linear Technology

The LTC2206 by Linear Technology is a 16-Bit ADCs. Below is the official datasheet preview.

📥 Download Datasheet

LTC2206 16-Bit ADCs by Linear Technology - Datasheet Preview — Official preview page of the **LTC2206** 16-Bit ADCs datasheet (Linear Technology).

Datasheet Details

Part number	LTC2206, LTC2207
Manufacturer	Linear Technology
File Size	1.24 MB
Description	16-Bit ADCs
Datasheet	LTC2207_LinearTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: LTC2206, LTC2207. Please refer to the document for exact specifications by model.

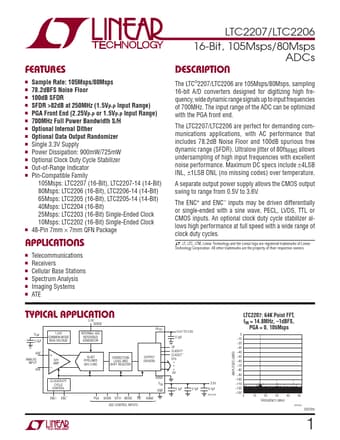

Additional preview pages of the LTC2206 datasheet.

LTC2206 Product details

Description

The LTC®2207/LTC2206 are 105Msps/80Msps, sampling 16-bit A/D converters designed for digitizing high frequency, wide dynamic range signals up to input frequencies of 700MHz.

Features

Sample Rate: 105Msps/80Msps.
78.2dBFS Noise Floor.
100dB SFDR.
SFDR >82dB at 250MHz (1.5VP-P Input Range).
PGA Front End (2.25VP-P or 1.5VP-P Input Range).
700MHz Full Power Bandwidth S/H.
Optional Internal Dither.
Optional Data Output Randomizer.
Single 3.3V Supply.
Power Dissipation: 900mW/725mW.
Optional Clock Duty Cycle Stabilizer.
Out-of-Range Indicator.
Pin-Compatible Family 105Msps: LTC2207 (16-Bit), LTC2207-14 (14-Bit) 80M.
