LTC2202 - 25Msps/10Msps ADCs

Name: LTC2202
SKU: LTC2202-643076

Linear Technology

📥 Download Datasheet

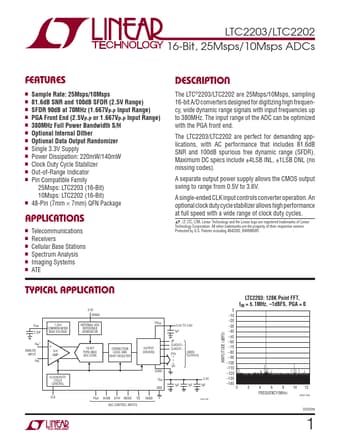

LTC2202 Datasheet Preview — Preview of LTC2202 PDF

Datasheet Details

Part number	LTC2202
Manufacturer	Linear Technology
File Size	1.42 MB
Description	25Msps/10Msps ADCs
Datasheet	LTC2202_LinearTechnology.pdf

LTC2202 Product details

Description

The LTC®2203/LTC2202 are 25Msps/10Msps, sampling 16-bit A/D converters designed for digitizing high frequency, wide dynamic range signals with input frequencies up to 380MHz.

Features

n Sample Rate: 25Msps/10Msps n 81.6dB SNR and 100dB SFDR (2.5V Range) n SFDR 90dB at 70MHz (1.667VP-P Input Range) n PGA Front End (2.5VP-P or 1.667VP-P Input Range) n 380MHz Full Power Bandwidth S/H n Optional Internal Dither n Optional Data Output Randomizer n Single 3.3V Supply n Power Dissipation: 220mW/140mW n Clock Duty Cycle Stabilizer n Out-of-Range Indicator n Pin Compatible Family 25Msps: LTC2203 (16-Bit) 10Msps: LTC2202 (16-Bit) n 48-Pin (7mm × 7mm) QFN Package.
