LTC2221, LTC2220 - 12-Bit ADCs

Linear

📥 Download Datasheet

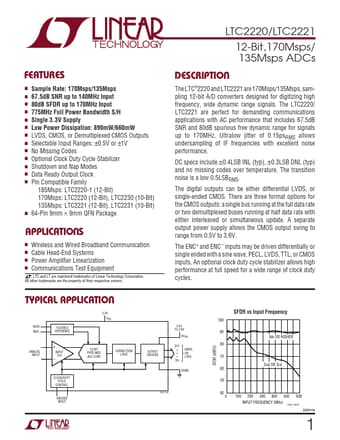

LTC2221 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC2221, LTC2220. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTC2221, LTC2220
Manufacturer	Linear
File Size	797.31 KB
Description	12-Bit ADCs
Datasheet	LTC2220-Linear.pdf
Note	This datasheet PDF includes multiple part numbers: LTC2221, LTC2220. Please refer to the document for exact specifications by model.

LTC2221 Product details

Features

Sample Rate: 170Msps/135Msps.
67.5dB SNR up to 140MHz Input.
80dB SFDR up to 170MHz Input.
775MHz Full Power Bandwidth S/H.
Single 3.3V Supply.
Low Power Dissipation: 890mW/660mW.
LVDS, CMOS, or Demultiplexed CMOS Outputs.
Selectable Input Ranges: ±0.5V or ±1V.
No Missing Codes.
Optional Clock Duty Cycle Stabilizer.
Shutdown and Nap Modes.
Data Ready Output Clock.
Pin Compatible Family 185Msps: LTC2220-1 (12-Bit) 170Msps: LTC2220.
