LT6658 - Voltage Reference

Name: LT6658
SKU: LT6658-1078454

Linear Technology

📥 Download Datasheet

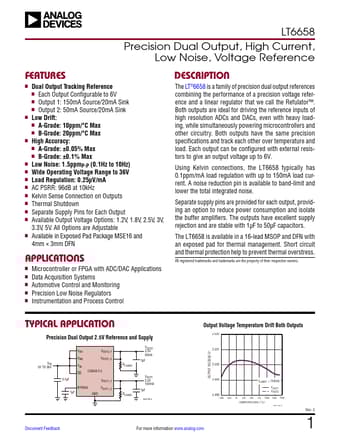

LT6658 Datasheet Preview — Preview of LT6658 PDF

Datasheet Details

Part number	LT6658
Manufacturer	Linear Technology
File Size	6.29 MB
Description	Voltage Reference
Datasheet	LT6658-LinearTechnology.pdf

LT6658 Product details

Description

The LT®6658 is a family of precision dual output references combining the performance of a precision voltage reference and a linear regulator that we call the Refulator™.

Features

nn Dual Output Tracking Reference nn Each Output Configurable to 6V nn Output 1: 150mA Source/20mA Sink nn Output 2: 50mA Source/20mA Sink nn Low Drift: nn A-Grade: 10ppm/°C Max nn B-Grade: 20ppm/°C Max nn High Accuracy: nn A-Grade: ±0.05% Max nn B-Grade: ±0.1% Max nn Low Noise: 1.5ppmP-P (0.1Hz to 10Hz) nn Wide Operating Voltage Range to 36V nn Load Regulation: 0.25µV/mA nn AC PSRR: 96dB at 10kHz nn Kelvin Sense Connection on Outputs nn Thermal Shutdown nn Separate Supply Pins for Each Output n.
