LT6654BX - Wide Supply 2.5V Precision Voltage Reference

Description

The LT®6654BX is a 2.5V precision voltage reference that is rated for operation up to 175°C junction temperature.

40°C to 175°C.

Features

  • nn 2.5V Output Voltage nn 100% Tested at 175°C nn Total Error < 1% Over.
  • 40°C to 175°C nn Low Thermal Hysteresis: 30ppm Over.
  • 40°C to 175°C nn Wide Supply Range to 36V nn Long Term Drift: 50ppm/√kHr nn Line Regulation(Up to 36V): 30ppm/V Max at 175°C nn Low Dropout Voltage: 120mV Max at 175°C nn Sources 3mA and Sinks 10mA at 175°C nn Load Regulation 50ppm/mA Max at 175°C nn Low Noise 1.5ppmP-P (0.1Hz to 10Hz) nn No Thermal Shutdown nn Fully Specified from.
  • 40°C to 175°C n.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LT6654 Precision Wide Supply High Output Drive Low Noise Reference Linear Technology
LT6650 Micropower 400mV Reference Linear Technology
LT6656 Voltage Reference Linear Technology
LT6657 Buffered Reference Linear Technology
LT6658 Voltage Reference Linear Technology

Other Datasheets by Analog Devices

Part Number Description
LT6658 Voltage Reference
LT6274 30V Low Power Op Amps
LT6275 30V Low Power Op Amps
LT6370 Low Noise Instrumentation Amplifier
LT6376 Voltage G = 10 Difference Amplifier

Full PDF Text Transcription

Click to expand full text

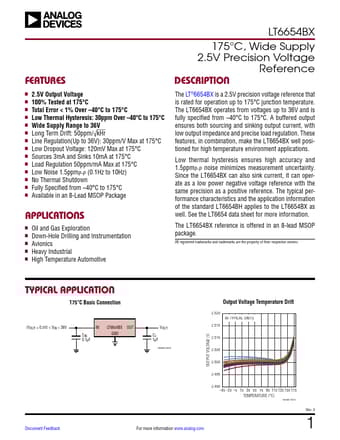

FEATURES nn 2.5V Output Voltage nn 100% Tested at 175°C nn Total Error < 1% Over –40°C to 175°C nn Low Thermal Hysteresis: 30ppm Over –40°C to 175°C nn Wide Supply Range to 36V nn Long Term Drift: 50ppm/√kHr nn Line Regulation(Up to 36V): 30ppm/V Max at 175°C nn Low Dropout Voltage: 120mV Max at 175°C nn Sources 3mA and Sinks 10mA at 175°C nn Load Regulation 50ppm/mA Max at 175°C nn Low Noise 1.5ppmP-P (0.1Hz to 10Hz) nn No Thermal Shutdown nn Fully Specified from –40°C to 175°C nn Available in an 8-Lead MSOP Package APPLICATIONS nn Oil and Gas Exploration nn Down-Hole Drilling and Instrumentation nn Avionics nn Heavy Industrial nn High Temperature Automotive LT6654BX 175°C, Wide Supply 2.5V Precision Voltage Reference DESCRIPTION The LT®6654BX is a 2.
