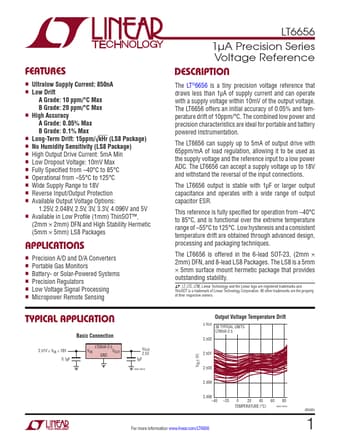

LT6656 Datasheet Preview — Preview of LT6656 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LT6656
Manufacturer	Linear Technology
File Size	579.20 KB
Description	Voltage Reference
Datasheet	LT6656_LinearTechnology.pdf

LT6656 Product details

Description

The LT®6656 is a tiny precision voltage reference that draws less than 1

Features

n Ultralow Supply Current: 850nA n Low Drift A Grade: 10 ppm/°C Max B Grade: 20 ppm/°C Max n High Accuracy A Grade: 0.05% Max B Grade: 0.1% Max n Long-Term Drift: 15ppm/√kHr (LS8 Package) n No Humidity Sensitivity (LS8 Package) n High Output Drive Current: 5mA Min n Low Dropout Voltage: 10mV Max n Fully Specified from.
40°C to 85°C n Operational from.
55°C to 125°C n Wide Supply Range to 18V n Reverse Input/Output Protection n Available Output Voltage Options:.
