LT6600-5 - Very Low Noise Differential Amplifier and 5MHz Lowpass Filter

📥 Download Datasheet

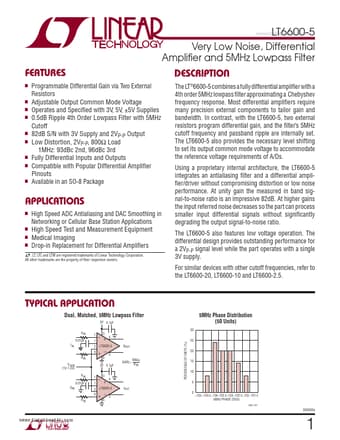

Preview of LT6600-5 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number LT6600-5
Manufacturer Linear Technology
File Size 182.50 KB
Description Very Low Noise Differential Amplifier and 5MHz Lowpass Filter
Datasheet download datasheet LT6600-5_LinearTechnology.pdf

LT6600-5 Product details

Description

n Programmable Differential Gain via Two External Resistors n Adjustable Output Common Mode Voltage n Operates and Specified with 3V, 5V, ±5V Supplies n 0.5dB Ripple 4th Order Lowpass Filter with 5MHz Cutoff n 82dB S/N with 3V Supply and 2VP-P Output n Low Distortion, 2VP-P, 800Ω Load 1MHz: 93dBc 2nd, 96dBc 3rd n Fully Differential Inputs and Outputs n Compatible with Popular Differential Amplifier Pinouts n Available in an SO-8 Package APPLICATIONS n High Speed ADC Antialiasing and DAC Smoothing
