LT6604-15 - Dual Very Low Noise Differential Amplifier and 15MHz Lowpass Filter

📥 Download Datasheet

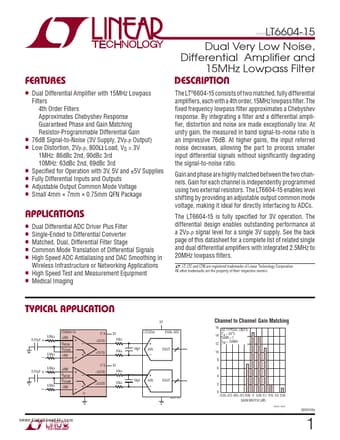

Preview of LT6604-15 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number LT6604-15
Manufacturer Linear Technology
File Size 234.39 KB
Description Dual Very Low Noise Differential Amplifier and 15MHz Lowpass Filter
Datasheet download datasheet LT6604-15_LinearTechnology.pdf

LT6604-15 Product details

Description

www.DataSheet4U.com n n n n n n Dual Differential Amplifier with 15MHz Lowpass Filters 4th Order Filters Approximates Chebyshev Response Guaranteed Phase and Gain Matching Resistor-Programmable Differential Gain 76dB Signal-to-Noise (3V Supply, 2VP-P Output) Low Distortion, 2VP-P, 800Ω Load, VS = 3V 1MHz: 86dBc 2nd, 90dBc 3rd 10MHz: 63dBc 2nd, 69dBc 3rd Specified for Operation with 3V, 5V and ±5V Supplies Fully Differential Inputs and Outputs Adjustable Output Common Mode Voltage Small 4mm × 7m

Features
