LD8116QL - Flexible Dimming Solution by PWM / 0-10V / Potentiometer

Name: LD8116QL
SKU: LD8116QL-1538966

Leadtrend

📥 Download Datasheet

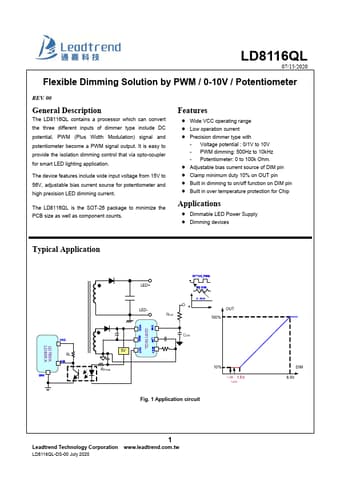

LD8116QL Datasheet Preview — Preview of LD8116QL PDF

Datasheet Details

Part number	LD8116QL
Manufacturer	Leadtrend
File Size	420.46 KB
Description	Flexible Dimming Solution by PWM / 0-10V / Potentiometer
Datasheet	LD8116QL-Leadtrend.pdf

LD8116QL Product details

Description

The LD8116QL contains a processor which can convert the three different inputs of dimmer type include DC potential, PWM (Plus Width Modulation) signal and potentiometer become a PWM signal output.

Features

include wide input voltage from 15V to 56V, adjustable bias current source for potentiometer and high precision LED dimming current. The LD8116QL is the SOT-26 package to minimize the PCB size as well as component counts. Features.
Wide VCC operating range.
Low operation current.
Precision dimmer type with - Voltage potential : 0/1V to 10V - PWM dimming: 500Hz to 10kHz - Potentiometer: 0 to 100k Ohm.
Adjustable bias current source of DIM pin.
Clamp minimum duty 10% on.
