LD8116D - Flexible Dimming Solution by PWM / 0-10V / Potentiometer

Name: LD8116D
SKU: LD8116D-1538968

Leadtrend

📥 Download Datasheet

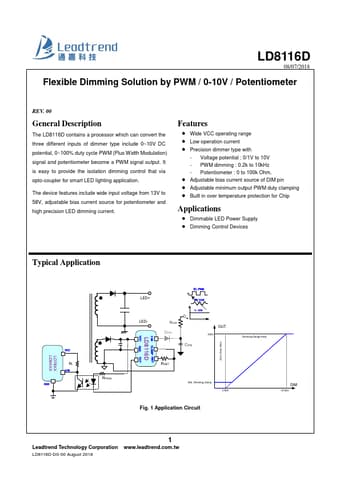

LD8116D Datasheet Preview — Preview of LD8116D PDF

Datasheet Details

Part number	LD8116D
Manufacturer	Leadtrend
File Size	746.63 KB
Description	Flexible Dimming Solution by PWM / 0-10V / Potentiometer
Datasheet	LD8116D-Leadtrend.pdf

LD8116D Product details

Description

The LD8116D contains a processor which can convert the three different inputs of dimmer type include 0~10V DC potential, 0~100% duty cycle PWM (Plus Width Modulation) signal and potentiometer become a PWM signal output.

Features

include wide input voltage from 13V to 58V, adjustable bias current source for potentiometer and high precision LED dimming current. Features.
Wide VCC operating range.
Low operation current.
Precision dimmer type with - Voltage potential : 0/1V to 10V - PWM dimming : 0.2k to 10kHz - Potentiometer : 0 to 100k Ohm.
Adjustable bias current source of DIM pin.
Adjustable minimum output PWM duty clamping.
Built in over temperature protection for Chip.
