LD8116B - Flexible Dimming Solution by PWM / 0-10V / Potentiometer

Name: LD8116B
SKU: LD8116B-1351849

Leadtrend

📥 Download Datasheet

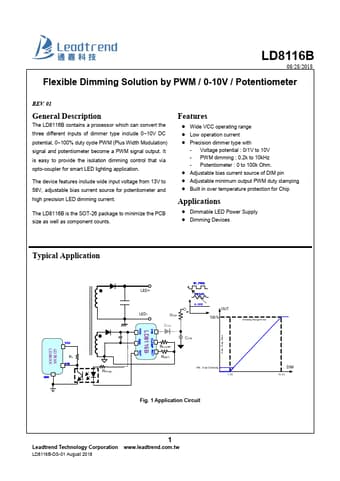

LD8116B Datasheet Preview — Preview of LD8116B PDF

Datasheet Details

Part number	LD8116B
Manufacturer	Leadtrend
File Size	2.02 MB
Description	Flexible Dimming Solution by PWM / 0-10V / Potentiometer
Datasheet	LD8116B-Leadtrend.pdf

LD8116B Product details

Description

The LD8116B contains a processor which can convert the three different inputs of dimmer type include 0~10V DC potential, 0~100% duty cycle PWM (Plus Width Modulation) signal and potentiometer become a PWM signal output.

Features

include wide input voltage from 13V to 58V, adjustable bias current source for potentiometer and high precision LED dimming current. The LD8116B is the SOT-26 package to minimize the PCB size as well as component counts. Features.
Wide VCC operating range.
Low operation current.
Precision dimmer type with - Voltage potential : 0/1V to 10V - PWM dimming : 0.2k to 10kHz - Potentiometer : 0 to 100k Ohm.
Adjustable bias current source of DIM pin.
Adjustable minimum output.
