3CA1412 - SILICON PNP TRANSISTOR

LZG

📥 Download Datasheet

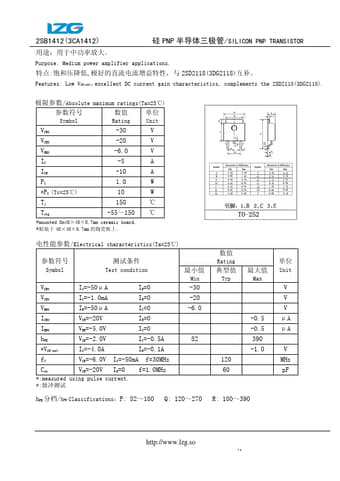

3CA1412 Datasheet Preview — Preview of 3CA1412 PDF

datasheet Preview Page 2

Datasheet Details

Part number	3CA1412
Manufacturer	LZG
File Size	240.16 KB
Description	SILICON PNP TRANSISTOR
Datasheet	3CA1412-LZG.pdf

3CA1412 Product details

Features

Low VCE(sat),excellent DC current gain characteristics, complements the 2SD2118(3DG2118). /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO -30 V VCEO -20 V VEBO -6.0 V IC -5 A ICM -10 A PC 1.0 W.
PC (Tc=25℃) 10 W Tj 150 ℃ Tstg -55～150.
mounted On40×40×0.7mm ceramic board.
40×40×0.7mm 。 ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition VCBO IC=-50μA IE=0 VCEO IC=-1.0mA IB=0 VEBO IE=-50μA IC=0 ICBO VCB=-20V IE=0 IEBO VEB=-5.0V IC.
