3CA1370 - SILICON PNP TRANSISTOR

LZG

📥 Download Datasheet

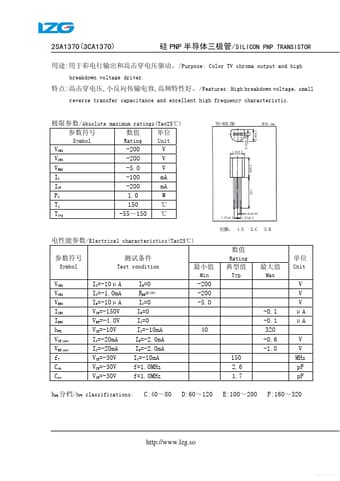

3CA1370 Datasheet Preview — Preview of 3CA1370 PDF

datasheet Preview Page 2

Datasheet Details

Part number	3CA1370
Manufacturer	LZG
File Size	286.24 KB
Description	SILICON PNP TRANSISTOR
Datasheet	3CA1370-LZG.pdf

3CA1370 Product details

Features

High breakdown voltage, small reverse transfer capacitance and excellent high frequency characteristic. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO VCEO VEBO IC ICP PC Tj Tstg -200 -200 -5.0 -100 -200 1.0 150 -55～150 V V V mA mA W ℃ ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition Rating Max Unit Min Typ VCBO VCEO VEBO ICBO IEBO hFE VCE(sat) VBE(sat) fT Cob Cre IC=-10μA IC=-1.0mA IE=-10μA VCB=-150V VEB=-4.0V VCE=-10V IC=-20mA IC=-20mA VCE=-30V VCB=.
