3CA1184 - SILICON PNP TRANSISTOR

Features

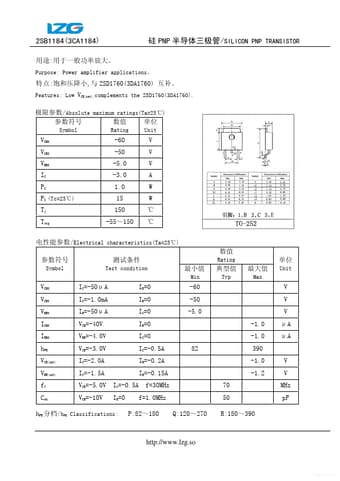

  • Low VCE(sat),complements the 2SD1760(3DA1760). /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO VCEO VEBO IC PC PC (Tc=25℃) Tj Tstg -60 -50 -5.0 -3.0 1.0 15 150 -55～150 V V V A W W ℃ ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition Rating Max Unit Min Typ VCBO VCEO VEBO ICBO IEBO hFE VCE(sat) VBE(sat) fT Cob IC=-50μA IC=-1.0mA IE=-50μA VCB=-40V VEB=-4.0V VCE=-3.0V IC=-2.0A IC=-1.5A VCE=-5.0V VCB=-10V IC=-0.5A IE=0 IE=0 IB=0 IC=0 IE=0 IC=0 IC=-0.5A IB=-.
