2SA1981 - SILICON PNP TRANSISTOR

LZG

📥 Download Datasheet

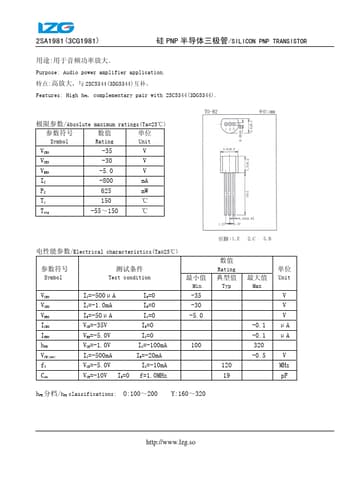

2SA1981 Datasheet Preview — Preview of 2SA1981 PDF

datasheet Preview Page 2

Datasheet Details

Part number	2SA1981
Manufacturer	LZG
File Size	218.38 KB
Description	SILICON PNP TRANSISTOR
Datasheet	2SA1981-LZG.pdf

2SA1981 Product details

Features

High hFE, complementary pair with 2SC5344(3DG5344). /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO -35 V VCEO -30 V VEBO -5.0 V IC -800 mA PC 625 mW Tj 150 ℃ Tstg -55～150 ℃ /Electrical characteristics(Ta=25℃) Symbol VCBO VCEO VEBO ICBO IEBO hFE VCE(sat) fT Cob Test condition IC=-500μA IC=-1.0mA IE=-50μA VCB=-35V VEB=-5.0V VCE=-1.0V IC=-500mA VCE=-5.0V VCB=-10V IE=0 IE=0 IB=0 IC=0 IE=0 IC=0 IC=-100mA IB=-20mA IC=-10mA f=1.0MHz Min -35 -30 -5.0 100 Rat.
