2SA1980-O - PNP Silicon Transistors

MCC

📥 Download Datasheet

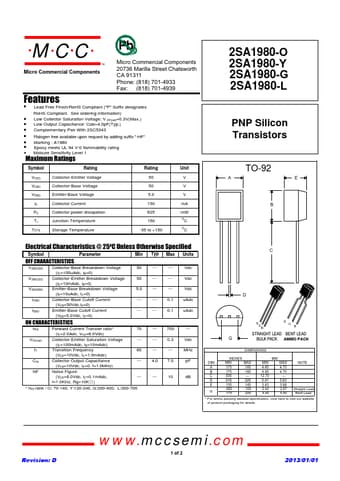

2SA1980-O Datasheet Preview — Preview of 2SA1980-O PDF

datasheet Preview Page 2

Datasheet Details

Part number	2SA1980-O
Manufacturer	MCC
File Size	242.60 KB
Description	PNP Silicon Transistors
Datasheet	2SA1980-O-MCC.pdf

2SA1980-O Product details

Features

Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) x Low Collector Saturation Voltage: V CE(sat)=0.3V(Max. ) x Low Output Capacitance: Cob=4.0pF(Typ. ) x Complementary Pair With 2SC5343.
Halogen free available upon request by adding suffix "-HF" x Marking : A1980.
Epoxy meets UL 94 V-0 flammability rating.
Moisure Sensitivity Level 1 Maximum Ratings Symbol Rating Rating Unit VCEO VCBO VEBO IC PC TJ TSTG Collec.
