2SA1980S - PNP Silicon Transistor

Name: 2SA1980S
SKU: 2SA1980S-73763

AUK corp

Datasheet Details

General small signal amplifier

Low collector saturation voltage : VCE(sat)=-0.3V(Max. ).
Low output capacitance : Cob=4pF(Typ. ).

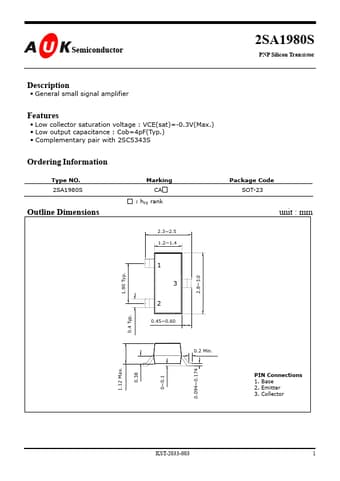

Complementary pair with 2SC5343S Ordering Information Type NO. 2SA1980S Marking CA : hFE rank Package Code SOT-23 Outline Dimensions 2.3~2.5 1.2~1.4 unit : mm 1 1.90 Typ. 3 2 0.4 Typ. 0.45~0.60 0.2 Min. 1.12 Max. 0.094~0.174 2.8~3.0 PIN Connections 1. Base 2. Emitter 3. Collector 0.38 KST-2033-003 0~0.1 1 2SA1980S Absolute maximum ratings Characteristic Coll.
