LTW-42NDP3ZT-012A - Through Hole Lamp

LITEON

The LTW-42NDP3ZT-012A by LITEON is a Through Hole Lamp. Below is the official datasheet preview.

📥 Download Datasheet

LTW-42NDP3ZT-012A Through Hole Lamp by LITEON - Datasheet Preview — Official preview page of the **LTW-42NDP3ZT-012A** Through Hole Lamp datasheet (LITEON).

Datasheet Details

Part number	LTW-42NDP3ZT-012A
Manufacturer	LITEON
File Size	415.67 KB
Description	Through Hole Lamp
Datasheet	LTW-42NDP3ZT-012A-LITEON.pdf
Additional preview pages of the LTW-42NDP3ZT-012A datasheet.

LTW-42NDP3ZT-012A Product details

Description

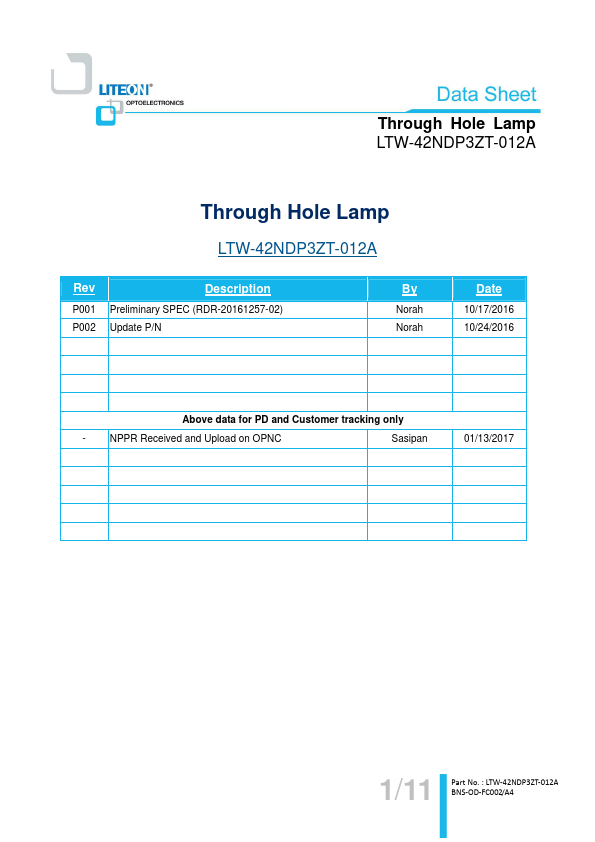

P001 Preliminary SPEC (RDR-20161257-02) P002 Update P/N By Norah Norah Date 10/17/2016 10/24/2016 Above data for PD and Customer tracking only - NPPR Received and Upload on OPNC Sasipan 01/13/2017 1/11 Part No.: LTW-42NDP3ZT-012A BNS-OD-FC002/A4 Through Hole Lamp LTW-42NDP3ZT-012A 1. Description Through hole white LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, rectangular and cylinder which are suitable for all applications requiring status indication.Several intens

Features

Lead (Pb) free product - RoHS compliant Low power consumption & High efficiency. Versatile mounting on p. c. board or panel. I. C. compatible/low current requirement. Popular T-1 diameter InGaN White & Water Clear lens ESD protected 1.2.
