LTW-420C5-M - Through Hole Lamp

LITEON

📥 Download Datasheet

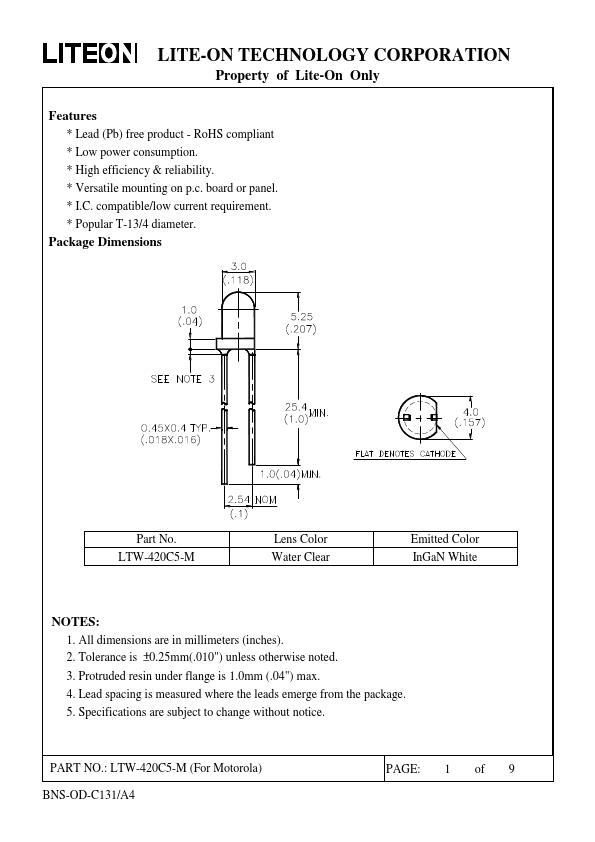

LTW-420C5-M Datasheet Preview — Preview of LTW-420C5-M PDF

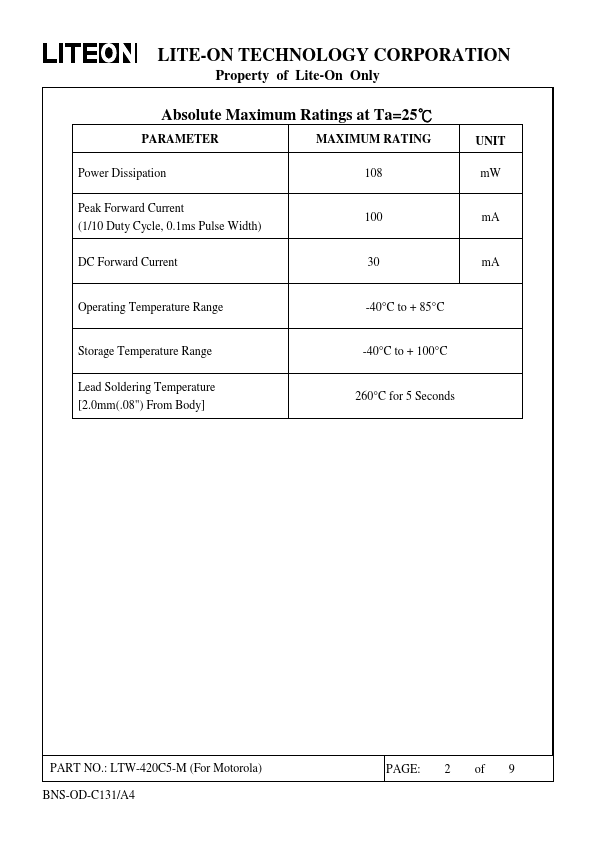

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTW-420C5-M
Manufacturer	LITEON
File Size	454.95 KB
Description	Through Hole Lamp
Datasheet	LTW-420C5-M-LITEON.pdf

LTW-420C5-M Product details

Features

Lead (Pb) free product - RoHS compliant.
Low power consumption.
High efficiency & reliability.
Versatile mounting on p. c. board or panel.
I. C. compatible/low current requirement.
Popular T-13/4 diameter. Package Dimensions Part No. LTW-420C5-M Lens Color Water Clear Emitted Color InGaN White NOTES: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm (.04") max. 4. Lea.
