LTW-42NC5-DL - Through Hole Lamp

LITEON

📥 Download Datasheet

LTW-42NC5-DL Datasheet Preview — Preview of LTW-42NC5-DL PDF

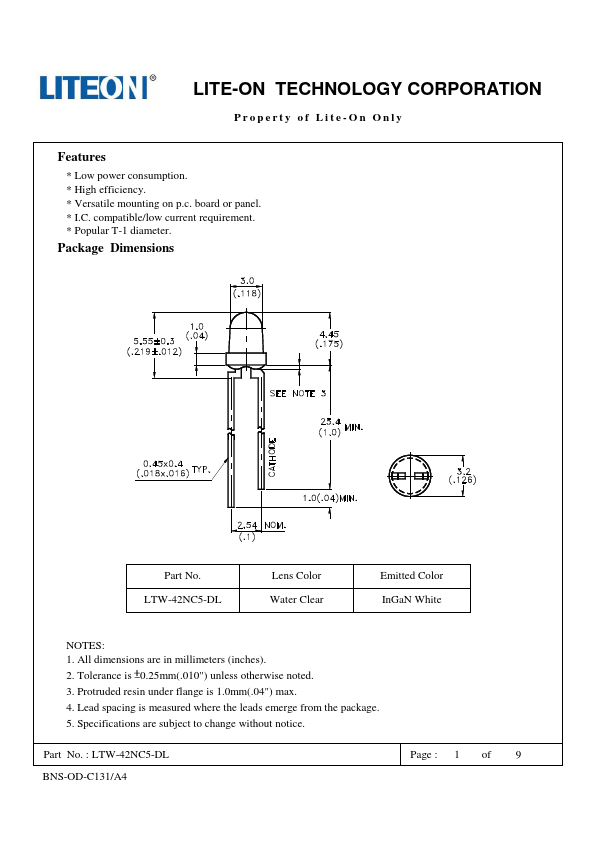

datasheet Preview Page 2

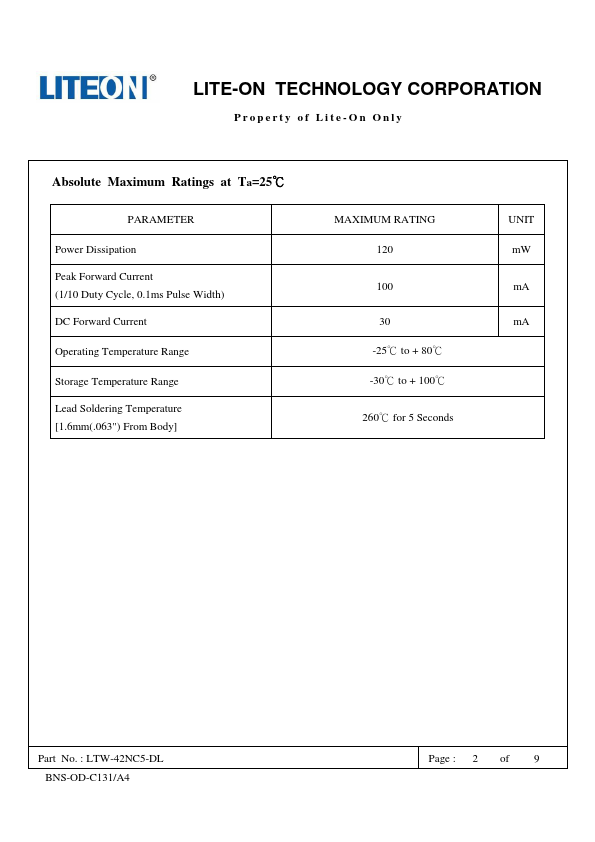

datasheet Preview Page 3

Datasheet Details

Part number	LTW-42NC5-DL
Manufacturer	LITEON
File Size	433.16 KB
Description	Through Hole Lamp
Datasheet	LTW-42NC5-DL-LITEON.pdf

LTW-42NC5-DL Product details

Features

Low power consumption.
High efficiency.
Versatile mounting on p. c. board or panel.
I. C. compatible/low current requirement.
Popular T-1 diameter. Package Dimensions Part No. LTW-42NC5-DL Lens Color Water Clear Emitted Color InGaN White NOTES: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measured where the leads emerge from the package.
